• Features

Límites de operación:
Presión: ≤2.1MPa
Velocidad: ≤25m/s
Temperatura: -20℃~+200℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS316L/AM350/ Titanio/Hastelloy-C)

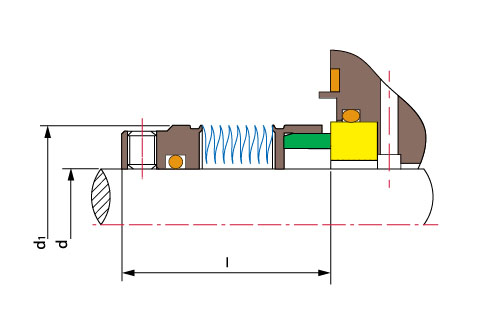

Tamaño de sello d (mm)	d1	l
18	32.0	27.5
20	33.3	27.5
22	36.0	27.5
24	38.1	30.0
25	39.0	30.0
28	42.0	32.5
30	44.0	32.5
32	46.0	32.5
33	47.0	32.5
35	49.2	32.5
38	52.4	34.0
40	55.6	34.0
43	58.7	34.0
45	58.7	34.0
48	61.9	34.0
50	65.1	34.5
53	68.3	34.5
55	71.0	34.5
60	74.6	39.5
65	84.1	39.5
70	87.3	45.0
75	95.3	45.0
80	98.4	44.5
85	104.8	44.5
90	108.0	49.5
95	114.3	49.5
100	120.7	49.5
105	131.7	48.3
110	138.1	48.3
115	144.5	48.3
120	144.5	48.3
125	150.8	48.3
130	157.8	48.3
140	170.5	48.3
150	176.9	48.3
