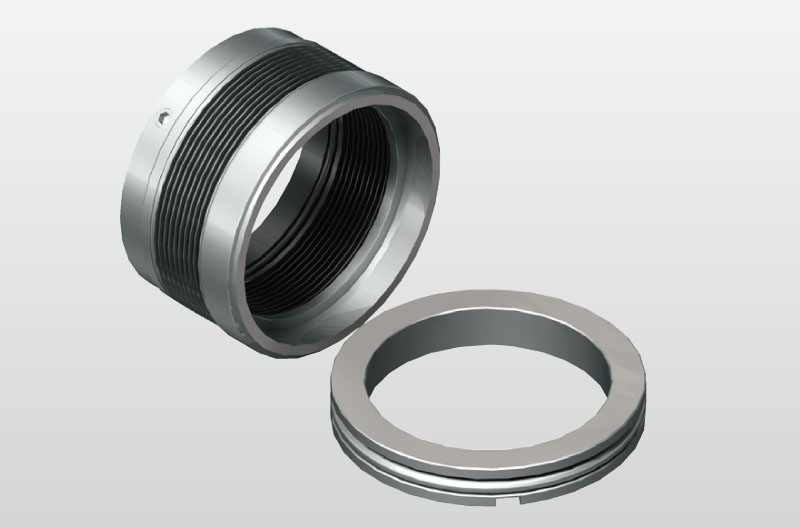

TDSMB-J01 Sello Mecánico de Fuelle Metálico (Reemplaza JOHN CRANE 670,680,676 ) (pulgadas)
Metal Bellows SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤2.1MPa
Velocidad: ≤25m/s
Temperatura: -20℃~+200℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS316L/AM350/ Titanio/Hastelloy-C)
|
Tamaño de sello (pulgadas) |
d1 | l |
| 0.750 | 1.312 | 1.250 |
| 0.875 | 1.437 | 1.250 |
| 0.937 | 1.500 | 1.250 |
| 1.000 | 1.562 | 1.250 |
| 1.125 | 1.687 | 1.250 |
| 1.250 | 1.812 | 1.312 |
| 1.375 | 1.937 | 1.437 |
| 1.500 | 2.062 | 1.437 |
| 1.625 | 2.187 | 1.437 |
| 1.750 | 2.312 | 1.437 |
| 1.875 | 2.437 | 1.500 |
| 2.000 | 2.562 | 1.500 |
| 2.125 | 2.687 | 1.500 |
| 2.250 | 2.812 | 1.562 |
| 2.375 | 2.937 | 1.562 |
| 2.500 | 3.187 | 1.562 |
| 2.625 | 3.312 | 1.625 |
| 2.750 | 3.437 | 1.625 |
| 2.875 | 3.625 | 1.687 |
| 3.000 | 3.750 | 1.687 |
| 3.125 | 3.875 | 1.750 |
| 3.250 | 4.000 | 1.750 |
| 3.375 | 4.125 | 1.750 |
| 3.500 | 4.250 | 1.875 |
| 3.625 | 4.375 | 1.875 |
| 3.750 | 4.500 | 1.875 |
| 3.875 | 4.625 | 1.875 |
| 4.000 | 4.750 | 1.875 |
| 4.250 | 5.187 | 1.903 |
| 4.500 | 5.437 | 1.903 |
| 4.750 | 5.687 | 1.903 |
| 5.000 | 5.937 | 1.903 |
| 5.250 | 6.213 | 1.903 |
| 5.500 | 6.463 | 1.903 |
| 5.750 | 6.714 | 1.903 |
| 6.000 | 6.964 | 1.903 |
