Sello Mecánico de Fuelle Metálico

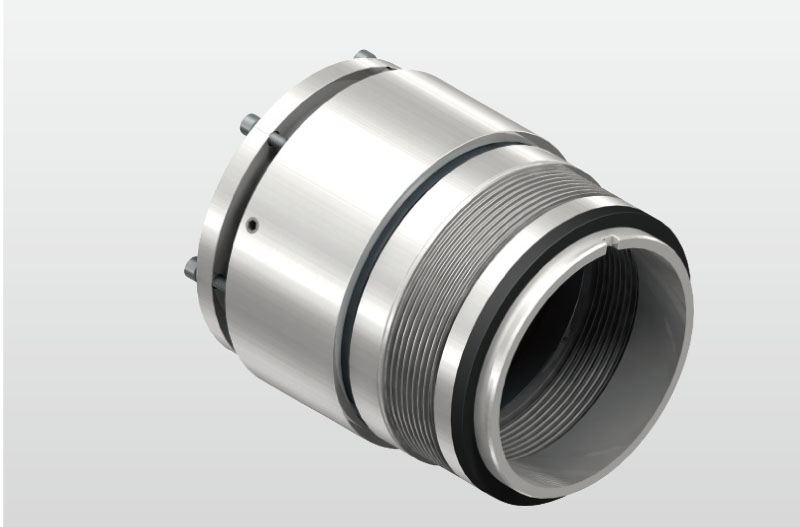

TDSMB-J04 Sello Mecánico de Fuelle Metálico (Reemplaza JOHN CRANE 604 ) (pulgadas)
Metal Bellows SealCategories:Sello Mecánico de Fuelle Metálico
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Related Product

Límites de operación:
Presión: ≤2MPa(Parte con onda simple)
≤6.9MPa(Parte con onda doble)
Velocidad: ≤25m/s
Temperatura: -75℃~+425℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/Carbono)
● Sello secundario (Carbono flexible)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|
Eje (mm) |
d | d1 | l1 | l2 |
| 1.000 | 1.000 | 1.937 | 1.969 | 1.138 |
| 1.125 | 1.125 | 2.062 | 1.969 | 1.138 |
| 1.25 | 1.250 | 2.187 | 1.969 | 1.138 |
| 1.375 | 1.375 | 2.312 | 1.938 | 1.138 |
| 1.500 | 1.500 | 2.562 | 2.063 | 1.191 |
| 1.625 | 1.625 | 2.562 | 2.060 | 1.222 |
| 1.75 | 1.750 | 2.687 | 2.060 | 1.254 |
| 1.875 | 1.875 | 2.812 | 2.062 | 1.254 |
| 2.000 | 2.000 | 2.937 | 2.060 | 1.285 |
| 2.125 | 2.125 | 3.187 | 2.182 | 1.316 |
| 2.250 | 2.250 | 3.312 | 2.218 | 1.384 |
| 2.375 | 2.375 | 3.437 | 2.186 | 1.379 |
| 2.500 | 2.500 | 3.562 | 2.184 | 1.410 |
| 2.625 | 2.625 | 3.687 | 2.250 | 1.443 |
| 2.750 | 2.750 | 3.937 | 2.250 | 1.608 |
| 2.875 | 2.875 | 4.062 | 2.281 | 1.608 |
| 3.000 | 3.000 | 4.187 | 2.250 | 1.608 |
| 3.125 | 3.125 | 4.312 | 2.250 | 1.608 |
| 3.250 | 3.250 | 4.437 | 2.219 | 1.608 |
| 3.375 | 3.375 | 4.562 | 2.282 | 1.608 |
| 3.500 | 3.500 | 4.687 | 2.373 | 1.650 |
| 3.625 | 3.625 | 4.812 | 2.375 | 1.650 |
| 3.750 | 3.750 | 4.937 | 2.375 | 1.650 |
| 3.875 | 3.875 | 5.062 | 2.375 | 1.650 |
