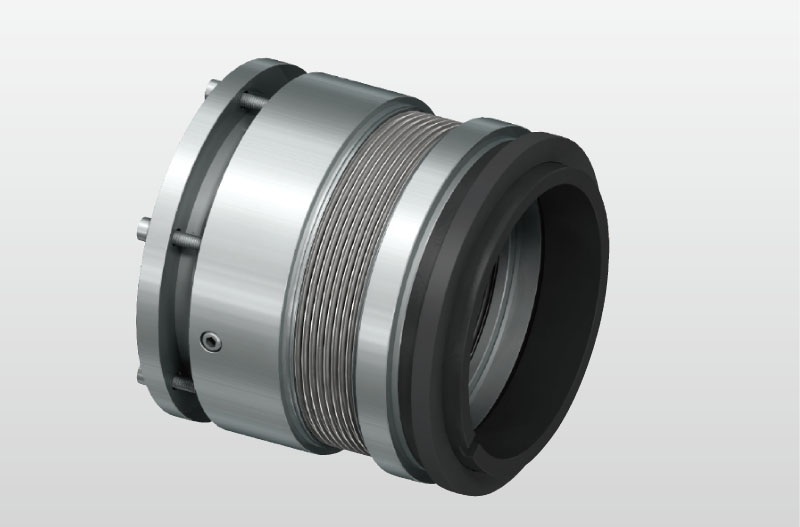

TDSMB-J05 Sello Mecánico de Fuelle Metálico (Reemplaza JOHN CRANE 606)
Metal Bellows SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤2MPa(Parte con onda simple)
≤6.9MPa(Parte con onda doble)
Velocidad: ≤25m/s
Temperatura: -75℃~+425℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (Carbono flexible)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|

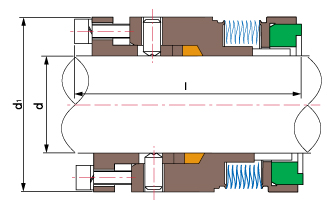

Eje (mm) |
d | d1 | l |
| 20 | 20 | 41.28 | 58.72 |
| 22 | 22 | 44.45 | 59.51 |
| 25 | 25 | 47.63 | 59.51 |
| 30 | 30 | 50.80 | 60.33 |
| 32 | 32 | 53.98 | 60.33 |
| 35 | 35 | 57.15 | 62.69 |
| 38 | 38 | 60.33 | 63.50 |
| 40 | 40 | 63.50 | 63.50 |
| 45 | 45 | 66.68 | 64.29 |
| 48 | 48 | 69.85 | 64.29 |
| 50 | 50 | 73.03 | 65.07 |
| 55 | 55 | 76.20 | 65.07 |
| 60 | 60 | 85.73 | 70.64 |
| 65 | 65 | 88.90 | 70.64 |
| 70 | 70 | 96.82 | 76.20 |
| 75 | 75 | 104.78 | 76.20 |
| 80 | 80 | 107.95 | 76.20 |
| 85 | 85 | 114.30 | 76.20 |
| 90 | 90 | 117.48 | 76.20 |
| 95 | 95 | 123.83 | 76.20 |
| 100 | 100 | 130.18 | 76.20 |
