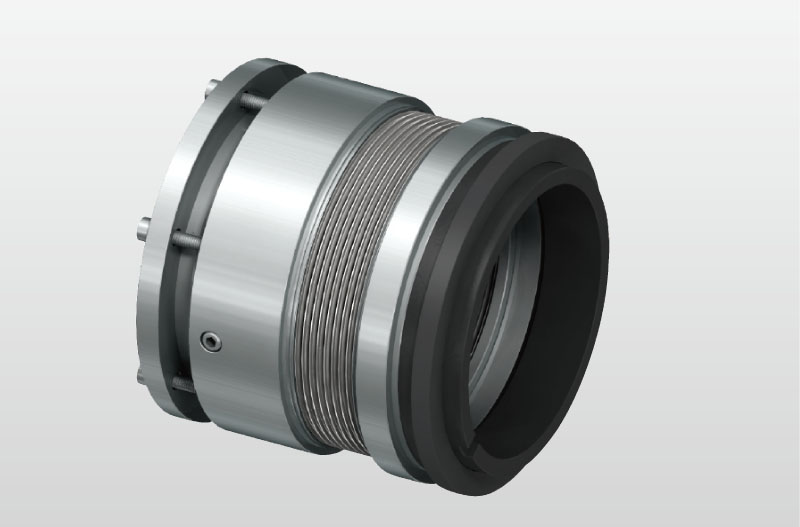

TDSMB-J05 Sello Mecánico de Fuelle Metálico (Reemplaza JOHN CRANE 606) (pulgadas)
Metal Bellows SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤2MPa(Parte con onda simple)
≤6.9MPa(Parte con onda doble)
Velocidad: ≤25m/s
Temperatura: -75℃~+425℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (Carbono flexible)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|
Eje (pulgadas) |
d | d1 | l |
| 0.750 | 0.750 | 1.625 | 2.312 |
| 0.875 | 0.875 | 1.750 | 3.343 |
| 1.000 | 1.000 | 1.875 | 2.343 |
| 1.125 | 1.125 | 2.000 | 2.375 |
| 1.250 | 1.250 | 2.125 | 2.375 |
| 1.375 | 1.375 | 2.250 | 2.468 |
| 1.500 | 1.500 | 2.375 | 2.500 |
| 1.625 | 1.625 | 2.500 | 2.500 |
| 1.750 | 1.750 | 2.625 | 2.531 |
| 1.875 | 1.875 | 2.750 | 2.531 |
| 2.000 | 2.000 | 2.875 | 2.562 |
| 2.125 | 2.125 | 3.000 | 2.562 |
| 2.250 | 2.250 | 3.250 | 2.750 |
| 2.375 | 2.375 | 3.375 | 2.781 |
| 2.500 | 2.500 | 3.500 | 2.781 |
| 2.625 | 2.625 | 3.687 | 2.875 |
| 2.750 | 2.750 | 3.812 | 3.000 |
| 2.875 | 2.875 | 4.000 | 3.000 |
| 3.000 | 3.000 | 4.125 | 3.000 |
| 3.125 | 3.125 | 4.250 | 3.000 |
| 3.250 | 3.250 | 4.375 | 3.000 |
| 3.375 | 3.375 | 4.500 | 3.000 |
| 3.500 | 3.500 | 4.625 | 3.000 |
| 3.625 | 3.625 | 4.750 | 3.000 |
| 3.750 | 3.750 | 4.875 | 3.000 |
