Sello Mecánico de Fuelle Metálico

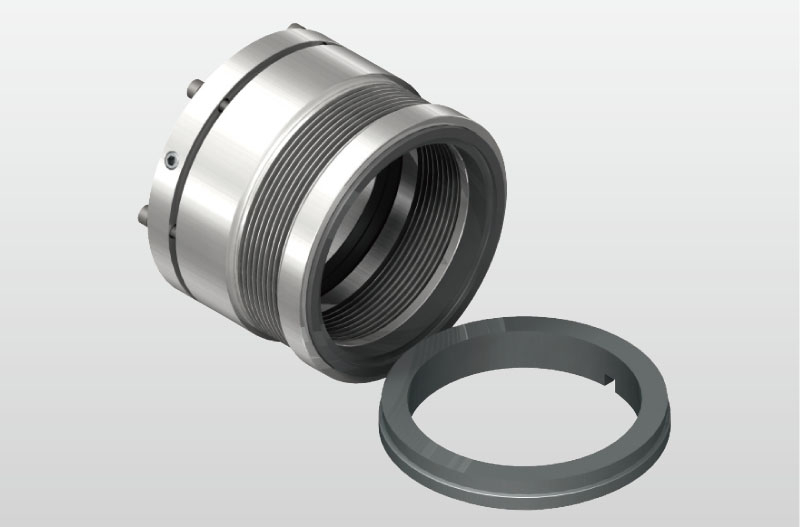

TDSMB-J06 Sello Mecánico de Fuelle Metálico (Reemplaza JOHN CRANE 609)
Metal Bellows SealCategories:Sello Mecánico de Fuelle Metálico
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Related Product

Límites de operación:
Presión: ≤2MPa(Parte con onda simple)
≤6.9MPa(Parte con onda doble)
Speed: ≤25m/s
Temperatura: -75℃~+425℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (Carbono flexible)
● Fuelles metálicos (SUS316L/AM350/Inconel718/Titanio/Hastelloy-C/Aleación-20)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|

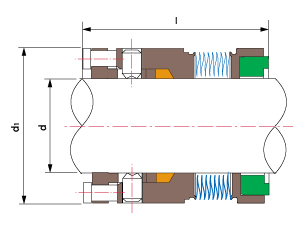

Eje (mm) |
d | d1 | l |
| 25 | 25 | 41.28 | 38.89 |
| 28 | 28 | 44.45 | 39.67 |
| 32 | 32 | 47.63 | 40.46 |
| 35 | 35 | 50.80 | 40.46 |
| 38 | 38 | 53.98 | 40.46 |
| 40 | 40 | 57.15 | 40.46 |
| 45 | 45 | 60.33 | 41.28 |
| 48 | 48 | 63.50 | 41.28 |
| 50 | 50 | 66.68 | 42.06 |
| 55 | 55 | 69.85 | 42.06 |
| 60 | 60 | 76.20 | 43.66 |
| 65 | 65 | 82.55 | 44.45 |
| 70 | 70 | 88.90 | 45.24 |
| 75 | 75 | 96.82 | 47.63 |
| 80 | 80 | 101.6 | 47.63 |
| 85 | 85 | 107.95 | 47.63 |
| 90 | 90 | 111.13 | 47.63 |
| 95 | 95 | 117.48 | 47.63 |
| 100 | 100 | 123.83 | 47.63 |
