• Features

Límites de operación:
Presión: ≤0.6MPa/≤1.6MPa
Velocidad: ≤2m/s/≤5m/s
Temperatura: -30℃~+200℃/-80℃~+250℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC/Cerámica)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

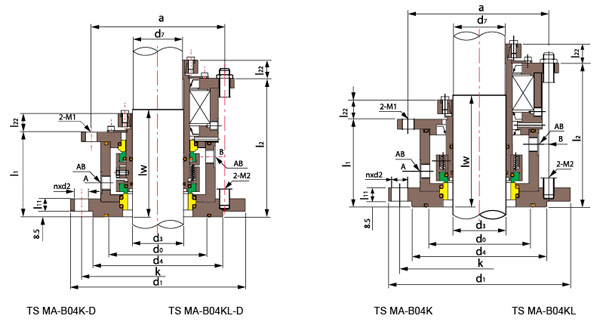

d31 (mm)	d71	d1	nxd2	d4	d0	k	l1	l2	lW2	l11	l22	a	M1	M2	A,B
40	38	175	4x18	110	90	145	110.5	159.5	143	15	28	122	M12	M16	G3/8
50	48	240	8x18	176	135	210	114.5	174.5	148	17	28	157	M12	M16	G3/8
60	58	240	8x18	176	135	210	119	181.5	158	17	28	168	M12	M16	G3/8
80	78	275	8x22	204	155	240	133	217.5	168	20	34	203	M16	M20	G1/2
100	98	305	8x22	234	190	270	137.5	218.5	178	20	34	228	M16	M20	G1/2
125	120	330	8x22	260	215	295	138.5	233.5	203	20	40	268	M20	M20	G1/2
140	135	395	12x22	313	250	350	152.5	250.5	208	20	40	285	M20	M20	G1/2
160	150	395	12x22	313	265	350	161	253	213	25	40	297	M20	M20	G1/2
180	170	445	12x22	364	310	400	166	263.5	233	25	45	332	M24	M20	G1/2
200	190	445	12x22	364	310	400	171	271	243	25	45	352	M24	M20	G1/2
220	210	505	16x22	422	340	460	\	\	263	25	\	\	M24	M20	G1/2

1)Диаметры валов D3 и D7 по DIN 28154
2)Шаг валов по DIN 28154
