• Features

Límites de operació:
Presión: ≤1.6MPa
Velocidad: ≤25m/s
Temperatura: -20℃~+260℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE/EPDM/Kalrez)
● Otras piezas (SUS304/SUS316)

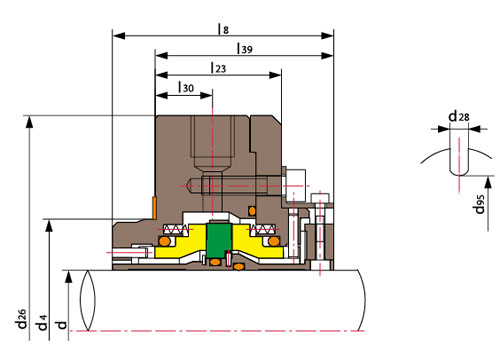

d (pulgadas)	d4 min	d26	d28	d95	l8	l23	l30	l39
0.875	1.500	3.750	0.437	2.295	2.574	1.398	0.513	2.028
1.000	1.625	3.750	0.437	2.421	2.574	1.398	0.513	2.028
1.125	1.750	4.250	0.437	2.469	2.574	1.398	0.513	2.028
1.250	2.000	4.250	0.437	2.669	2.574	1.398	0.513	2.028
1.375*	2.125	4.250	0.437	2.795	2.574	1.398	0.513	2.028
1.375**	2.000	4.250	0.437	2.795	2.732	1.398	0.513	2.028
1.500	2.250	4.875	0.562	3.142	2.732	1.567	0.697	2.224
1.625	2.375	4.500	0.437	2.680	2.732	1.567	0.697	2.224
1.750	2.500	5.500	0.562	3.390	2.732	1.567	0.697	2.224
1.875	2.625	5.500	0.562	3.335	2.732	1.567	0.697	2.224
2.000	2.750	4.750	0.562	3.461	2.732	1.567	0.697	2.224
2.125	2.875	6.000	0.687	3.768	2.732	1.567	0.697	2.224
2.250	3.125	6.500	0.687	3.890	2.732	1.567	0.697	2.224
2.375	3.250	6.250	0.687	4.016	2.732	1.567	0.697	2.224
2.500	3.375	6.500	0.687	4.142	2.812	1.724	0.776	2.303
2.625	3.625	6.500	0.687	4.268	2.812	1.724	0.776	2.303
2.750	3.750	7.000	0.687	4.370	2.812	1.724	0.776	2.303
3.000	4.000	7.000	0.687	4.642	2.812	1.724	0.776	2.303
3.500	4.500	7.250	0.812	5.142	2.812	1.724	0.776	2.303
4.000	5.000	7.250	0.812	5.642	2.812	1.724	0.776	2.303
