• Features

Límites de operación:
Presión: ≤2.1MPa
Velocidad: ≤1450rpm
Temperatura: -20℃~+260℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE/EPDM/Kalrez)
● Otras piezas (SUS304/SUS316)

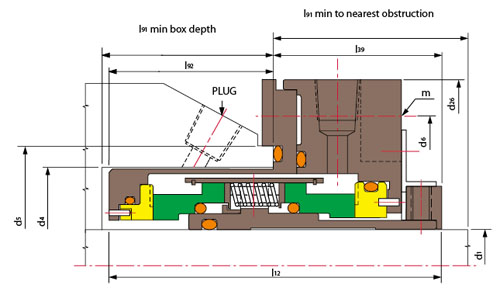

Tamaño de sello (mm)	d1	d4	d26	l12	l39	l90	l91	l92	d5	m	d6
1.125	28.58	66.68	114.30	109.52	57.15	58.72	56.37	52.37	79.38	M10	95.25
1.375	34.93	73.03	127.00	103.20	52.40	60.33	54.80	50.08	85.73	M11	101.60
1.500	38.10	76.20	139.70	103.20	50.80	60.33	56.40	52.40	95.20	M12	114.30
1.625	41.28	85.73	136.53	119.67	53.67	69.00	70.00	66.00	98.43	M10	112.70
1.750	44.45	88.90	165.10	119.93	65.96	71.42	57.97	53.97	110.24	M12	139.70
1.875	47.63	92.08	149.23	132.94	78.54	92.08	58.41	54.41	104.78	M12	127.00
2.000	50.80	95.25	146.05	116.65	64.28	65.07	56.37	52.37	111.13	M10	127.00
2.125	53.98	98.42	180.98	118.30	65.17	72.21	57.13	53.13	119.66	M16	152.40
2.375	60.03	107.95	180.98	117.04	55.50	64.29	65.49	61.49	133.35	M16	152.40
2.500	63.50	114.30	200.03	117.09	52.39	73.03	68.70	64.70	138.56	M16	171.45
2.625	66.68	117.48	177.80	117.05	52.35	103.17	68.70	64.70	130.18	M12	152.40
2.750	69.85	120.65	200.03	124.82	62.92	72.39	68.90	61.90	138.56	M16	171.45
3.000	76.20	127.00	203.20	124.99	67.84	121.44	61.15	57.15	146.05	M16	171.45
3.250	82.55	133.35	195.25	131.30	71.00	119.99	64.33	60.33	146.05	M16	165.00
3.500	88.90	142.88	210.34	142.44	82.11	133.35	64.33	60.33	158.75	M16	177.80
3.750	95.25	152.40	239.70	147.65	65.15	82.55	86.50	82.50	171.40	M16	209.55
4.000	101.60	158.75	248.00	157.47	113.17	127.00	48.30	44.30	185.00	M20	215.00
