• Features

Límites de operación:
Presión: ≤4.14MPa
Velocidad: ≤30.5m/s
Temperatura: -40℃~204℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (Carbono)
● Sello secundario (VITÓN/FFKM)
● Otras piezas (SUS304/SUS316)

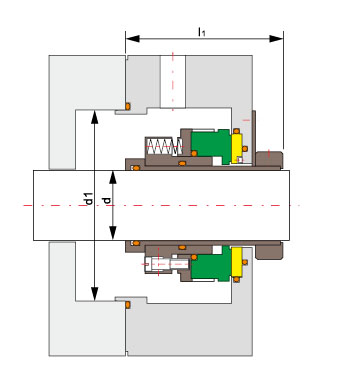

d (mm)	d1	l1
26.97	65.89	65.89
31.75	75.79	65.07
34.93	78.97	73.81
38.10	82.55	74.63
39.67	85.73	85.73
46.02	94.46	85.73
52.37	98.43	85.73
60.33	109.14	86.51
66.68	116.69	90.47
69.85	122.22	90.47
79.38	127.00	88.90
82.55	131.34	100.81
88.90	136.93	90.47
95.25	142.09	92.08
101.60	149.23	92.08
115.87	163.53	92.08
138.13	190.50	100.81
150.83	202.41	100.81
